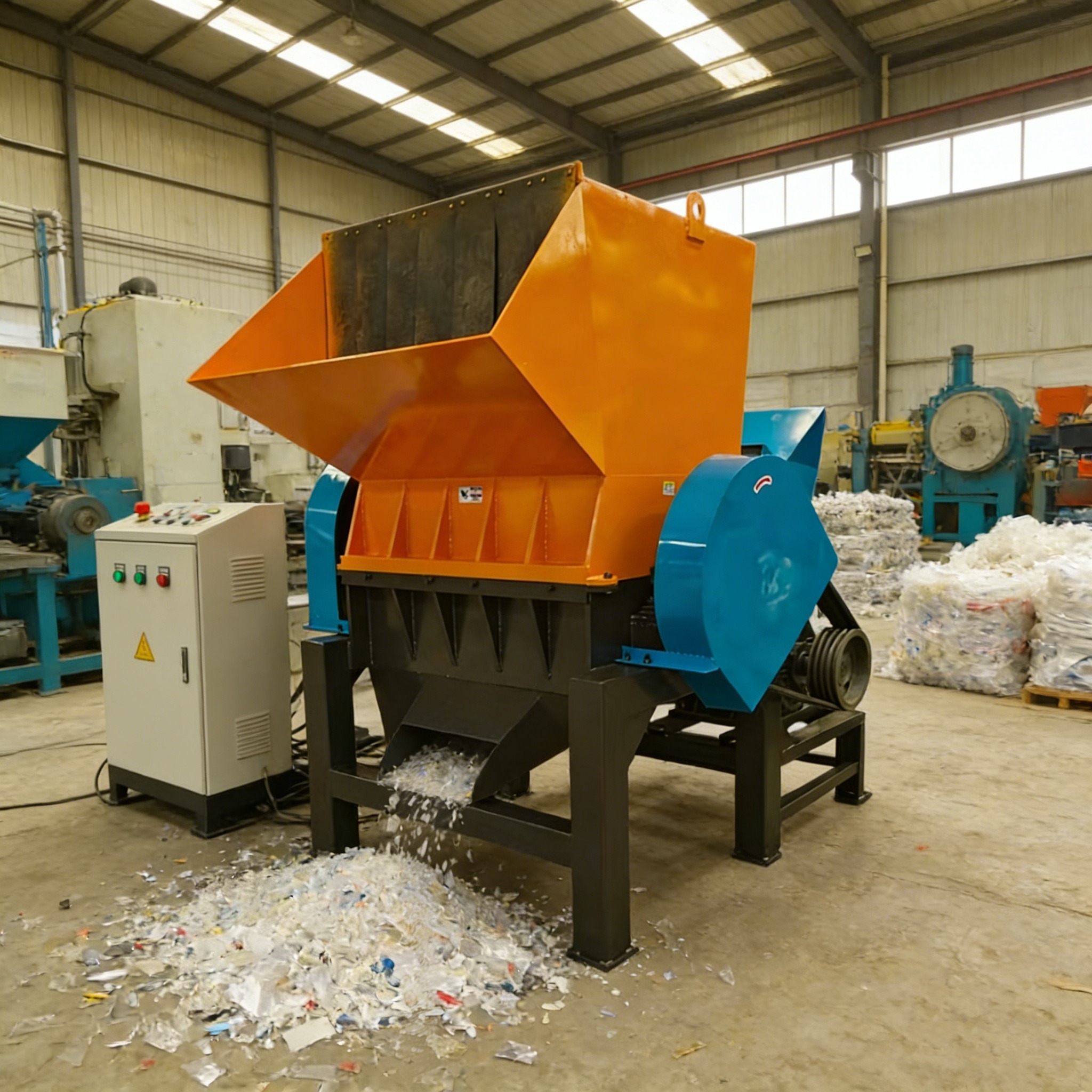

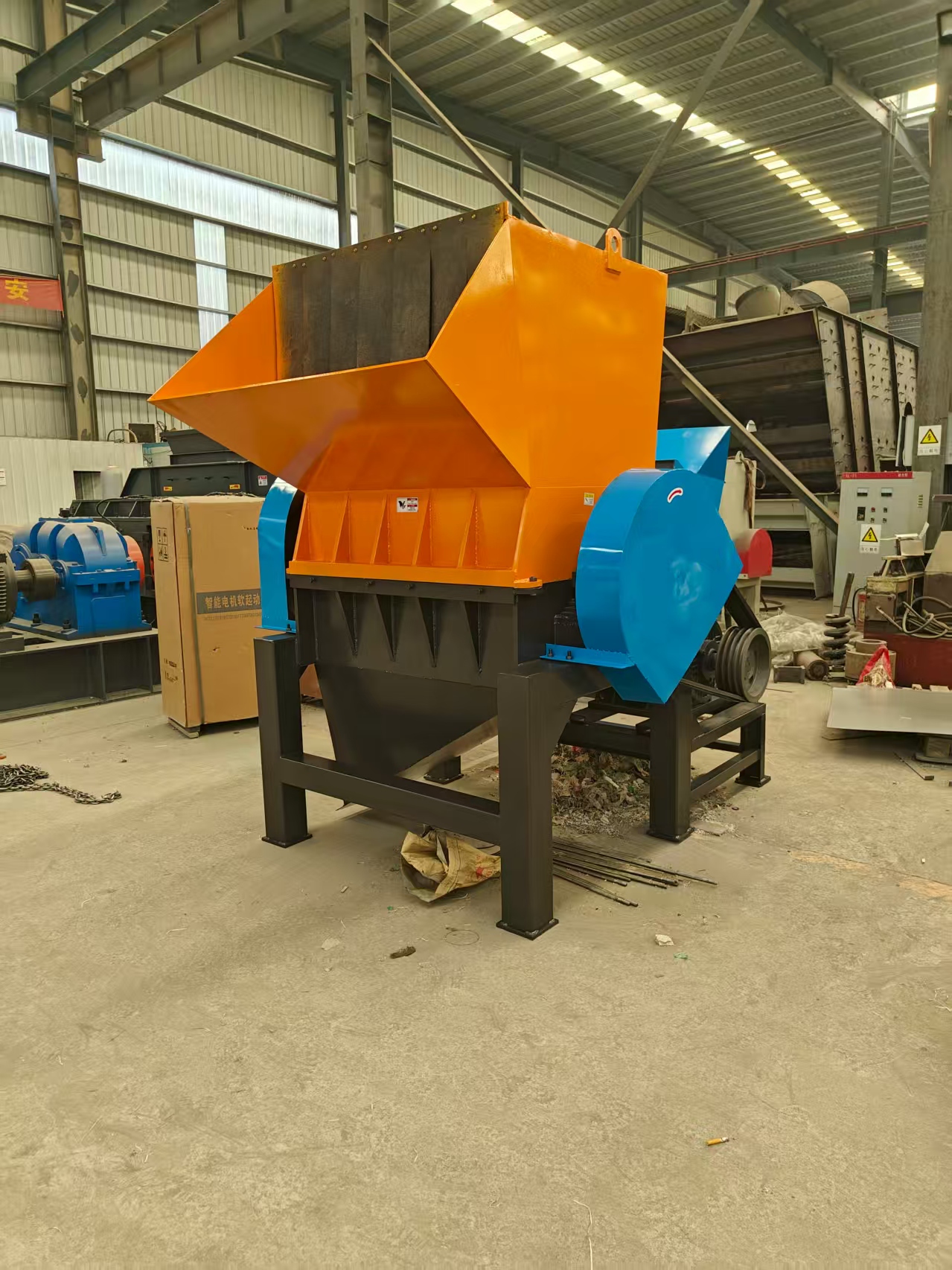

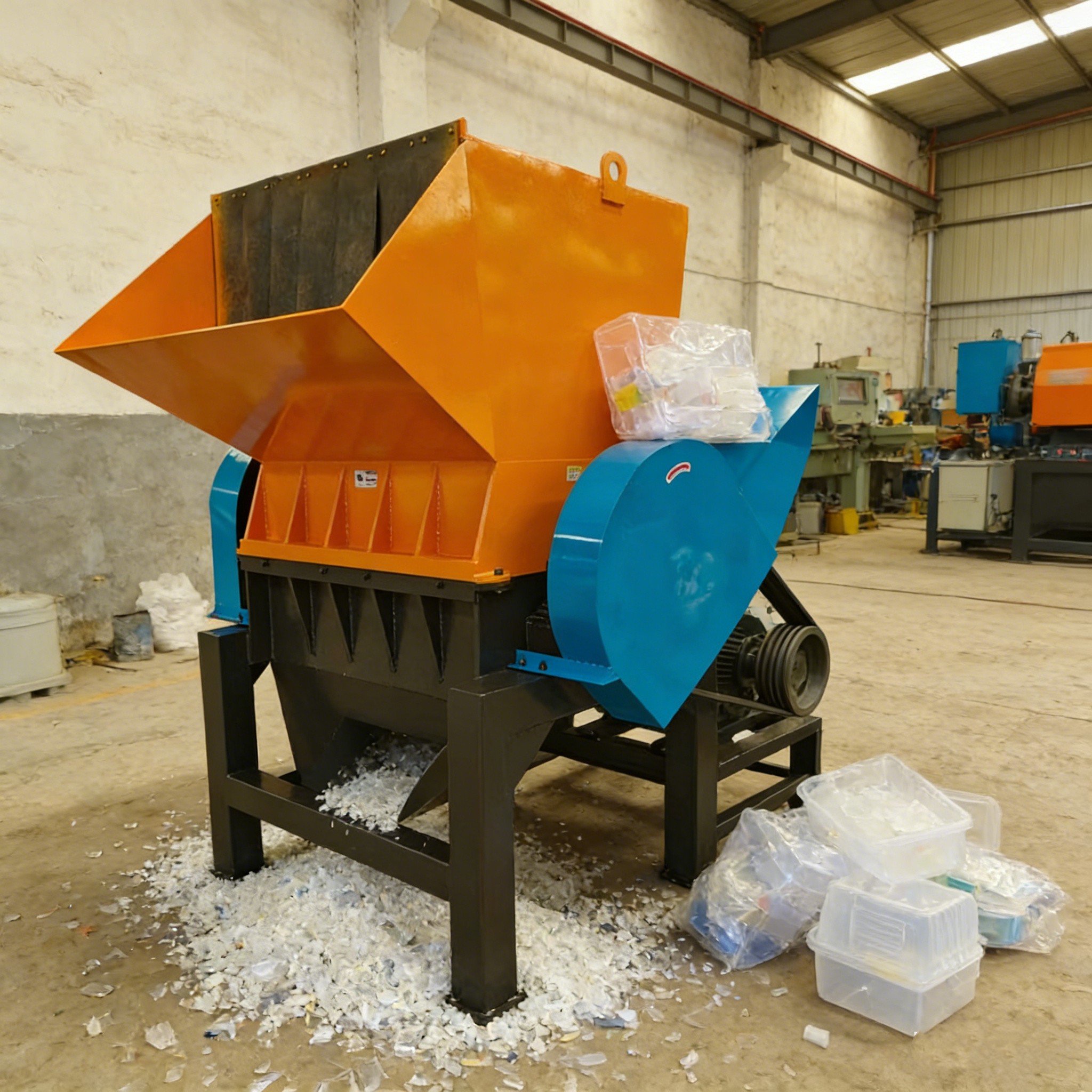

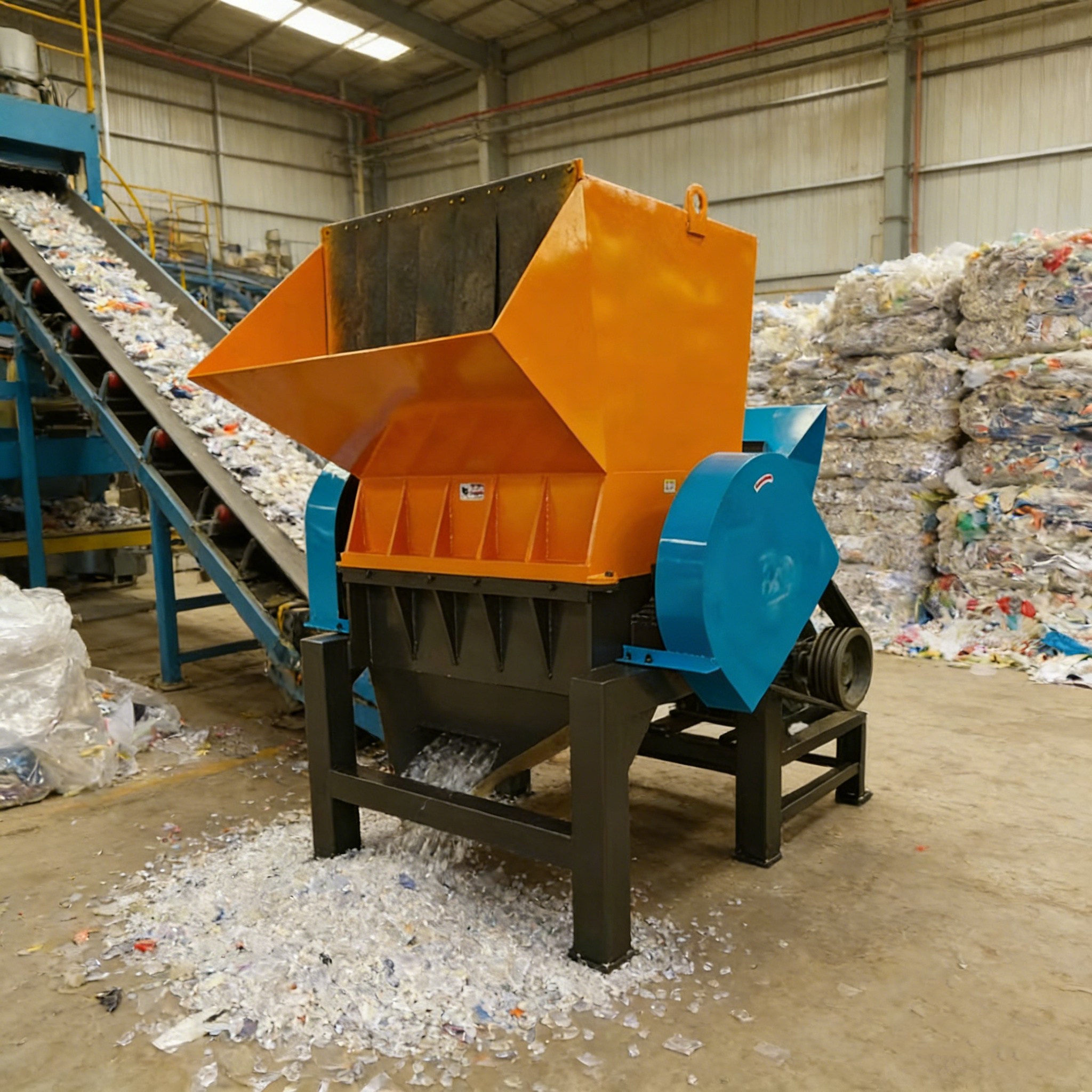

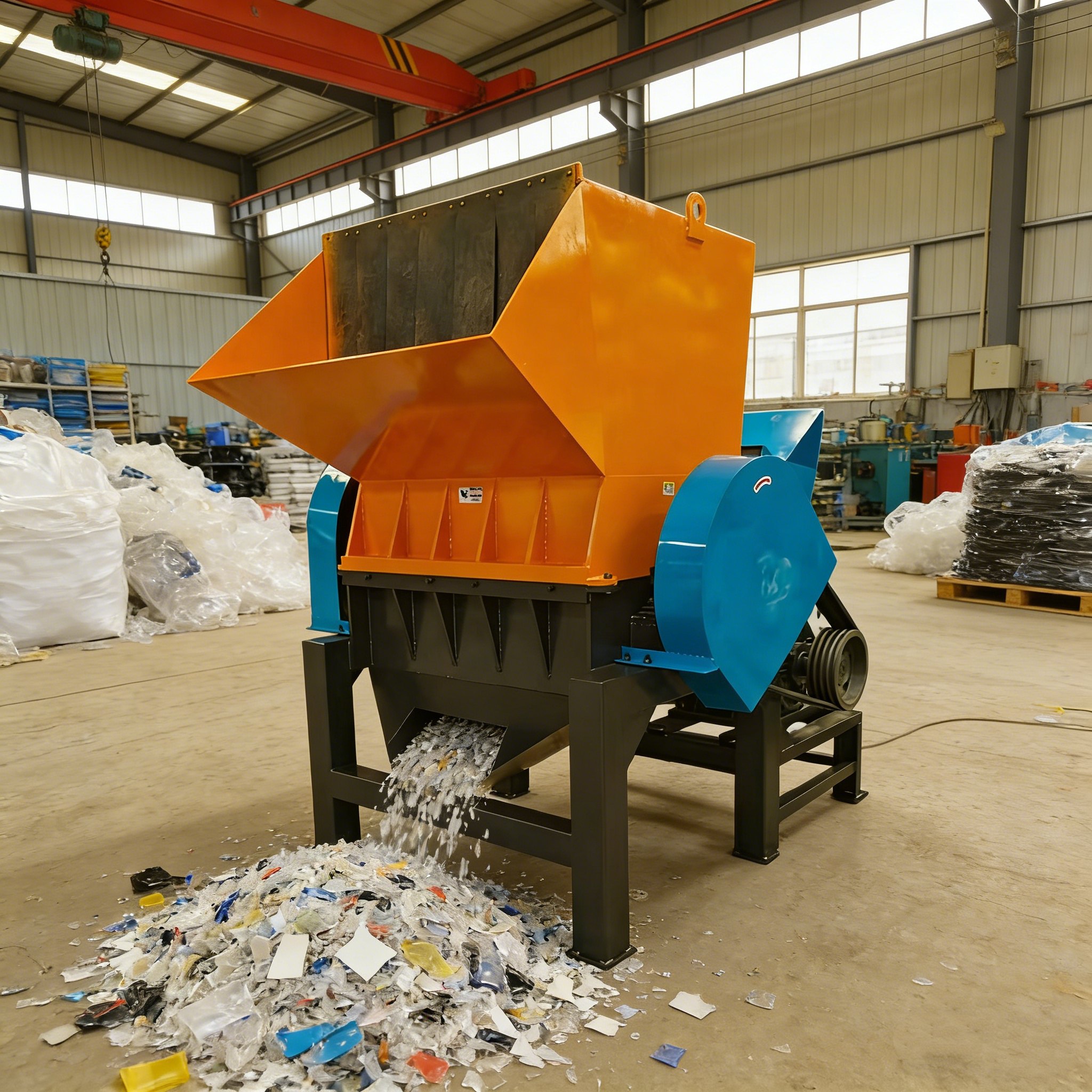

Waste plastic shredder plastic product crushing and grinding machine
Plastic shredders are designed specifically for various hard and soft plastics. Through low-speed, high-torque cutting technology, they transform large volumes of plastic waste into uniform sheets or granules, preparing them for subsequent granulation or washing processes.
Technical Specifications：
Model | 600 | 800 | 1000 | 1200 |
Fixed and movable blades (blades) | 4*6 | 4*6 | 4*6 | 4*6,6*9 |
Power (kW) | 15-18.5 | 22-30 | 30-37 | 45-55 |
Sieve aperture (mm) | φ6-40 | φ6-40 | φ10-40 | φ10-40 |
Capacity (tons) | 0.6-0.8 | 0.9-1.2 | 1-1.3 | 1.5-2 |
External dimensions (Lx W x H) (mm) | 2000x1210x1850 | 2200x1400x2100 | 2300x1700x2100 | 2280x2000x2100 |
Feed inlet size (mm) | 640x560 | 850x680 | 1050x690 | 1245x735 |
Weight (kg) | 555 | 980 | 1080 | 1360 |
Working principle of a plastic shredder:
Plastic shredders typically employ a low-speed, high-torque design. Their core component is the cutter shaft, which, driven by a motor and a reducer, causes the moving blades on the shaft to engage with the fixed blades on the machine base (or between the moving blades) through shearing, tearing, and compression, thereby shredding the plastic material.
Advantages of Plastic Shredders:
1. Low Noise and Low Dust: Compared to high-speed crushers, shredders operate at lower speeds, significantly reducing noise and fine dust.
2. Durable Blades: Made of high-strength alloy steel, blades are highly wear-resistant and often feature a modular design for easy maintenance and replacement.
3. Automatic Protection: When encountering hard objects (such as metal blocks) that cannot be shredded, the PLC control system automatically reverses the circuit to prevent motor burnout and mechanical damage.
4. High Processing Capacity: Can directly feed whole bundles or large pieces of material without manual pre-cutting.
Applicable Materials for Plastic Shredders:
1. Soft Plastics: Agricultural film, packaging film, woven bags, ton bags.
2. Rigid Plastics: PET bottles, plastic pallets, blue drums, pipes, turnover boxes.
3. Head Material: Blocky waste material generated during plastic factory production.
4. Composite materials: Car bumpers, appliance casings, etc.
Company Profile:
Henan Longsheng Machinery Equipment Co., Ltd., established in 2018, is a comprehensive enterprise integrating production, R&D, and sales. The factory is located in the Gongyi Industrial Cluster Area, Henan Province, China. The company's products are sold both domestically and internationally, serving customers worldwide and promoting common development among nations.
Packaging and Transportation:
1. Install a waterproof membrane to reduce dust and water contamination.
2.Use standard wooden crates as outer packaging to minimize bumps during transportation.
