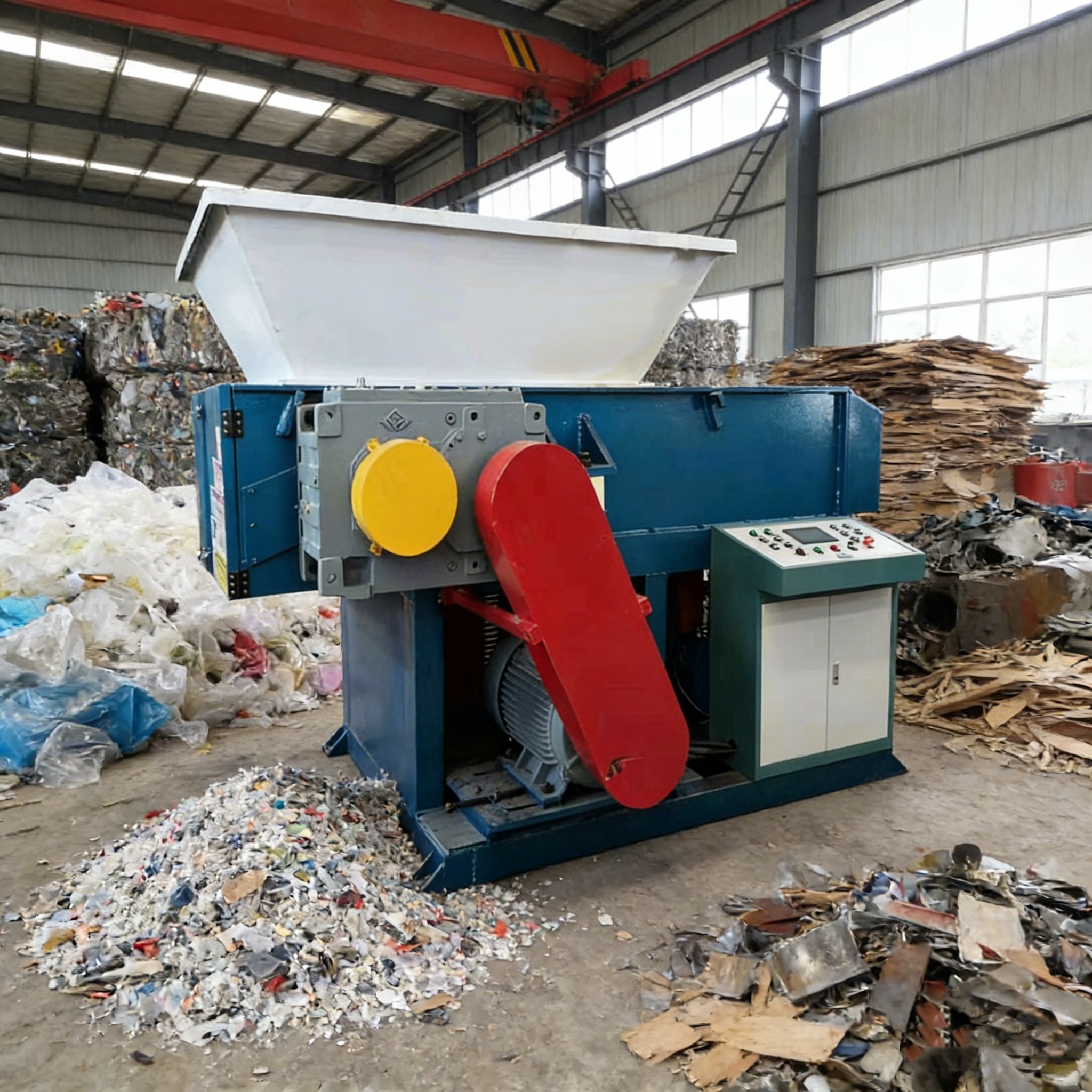

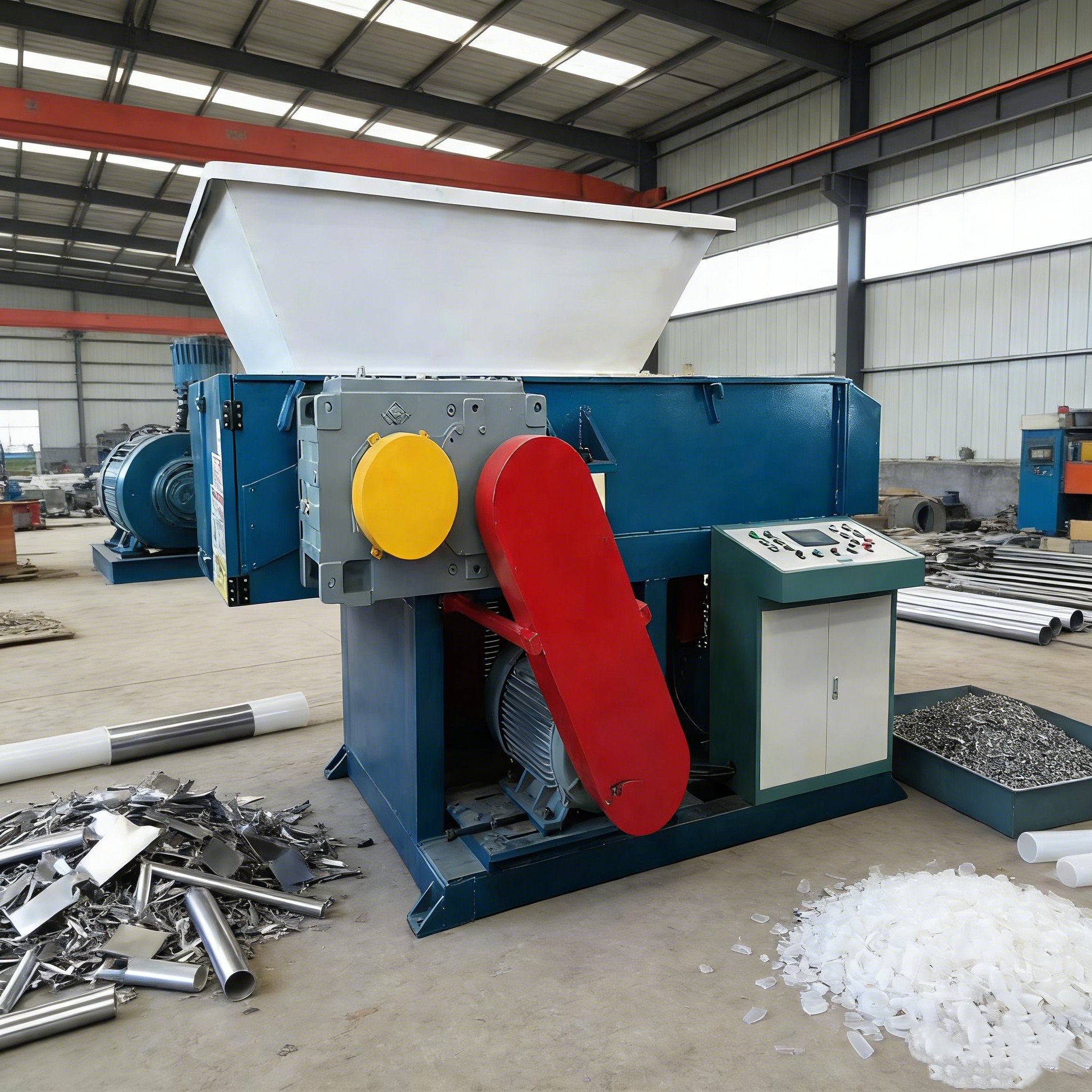

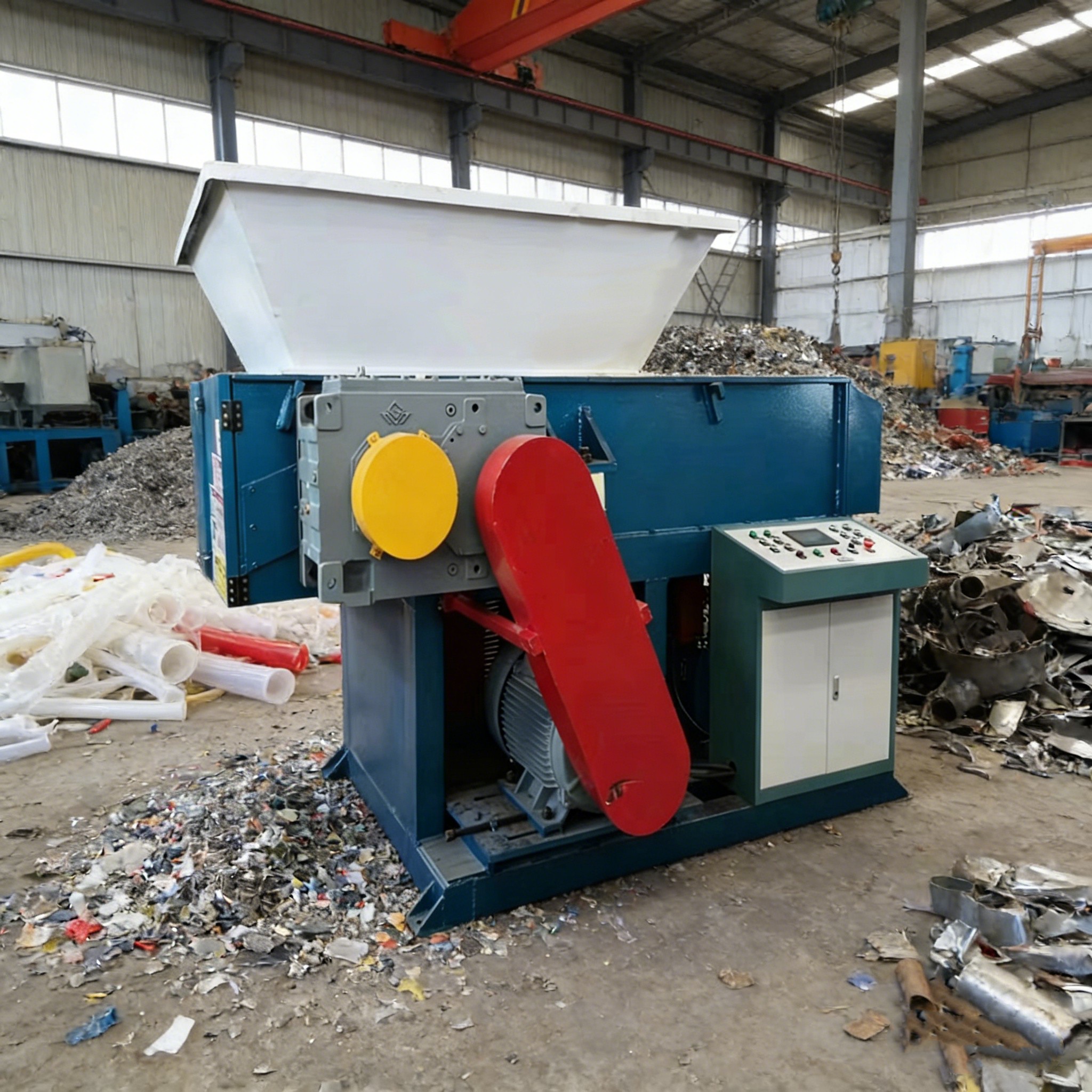

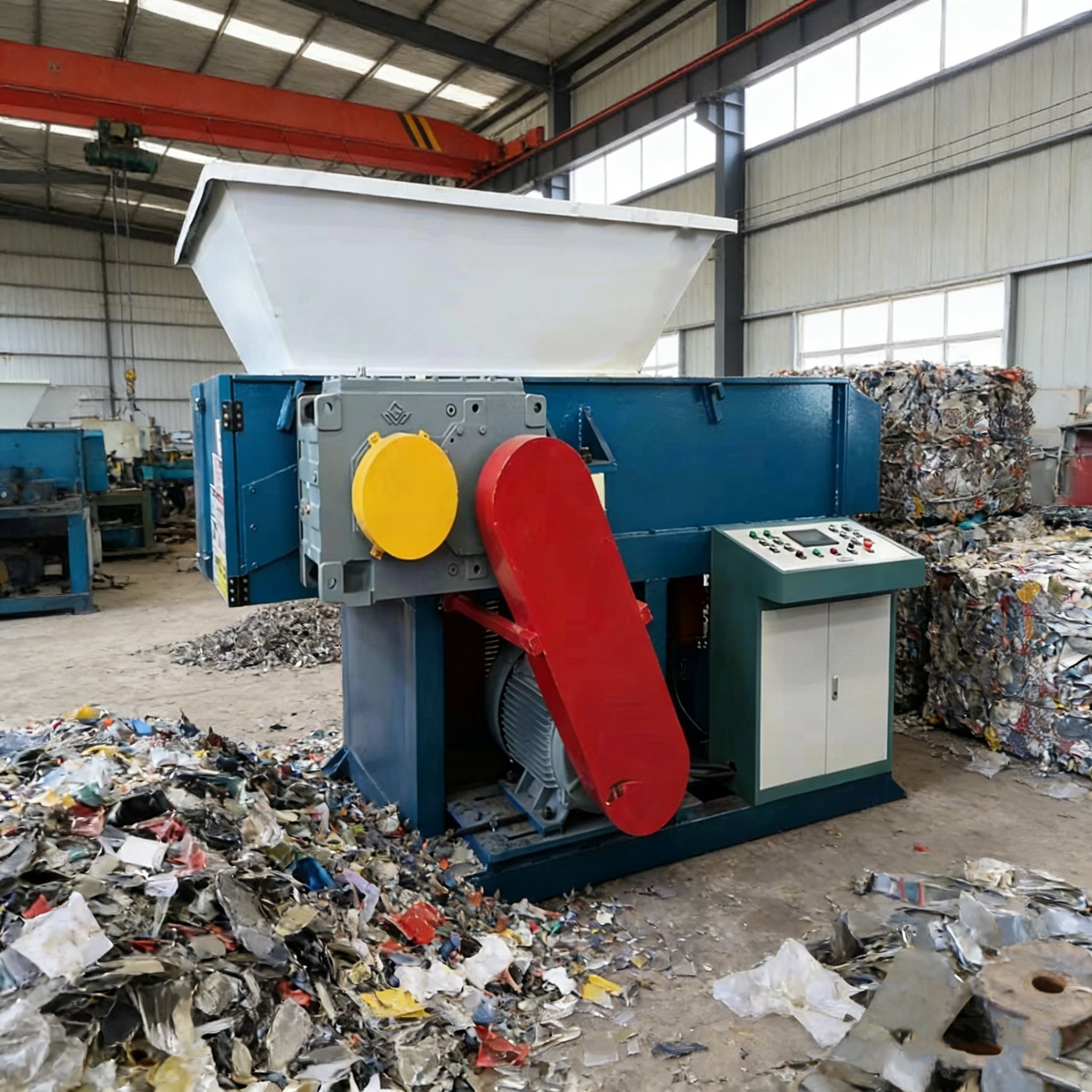

New type of multi-functional hydraulic single-shaft shredder recycling equipment
Hydraulic single-shaft shredder is a low-speed, high-torque industrial crushing equipment. Its core features are a combination of a single-blade roller and hydraulic forced feeding. It is designed to process large, tough, and irregular waste materials and is widely used in the recycling of renewable resources and the treatment of industrial solid waste.
Technical Specifications：
Mode | Motor power（Kw） | Hydraulic pump station power（kw） | Blade diameter（mm） | External dimension（mm） | Shredding chamber dimension（mm） | Output（kg/h） |
600 | 22 | 3 | 300 | 2200*1400*1900 | 600*600 | 600-800 |
800 | 45 | 4 | 350 | 2800*1700*1900 | 800*800 | 800-1000 |
1000 | 55 | 5.5 | 400 | 3400*1800*2200 | 1000*1200 | 1000-1500 |
1200 | 75 | 5.5 | 400 | 3600*2000*2400 | 1200*1400 | 1500-2000 |
Working Principle:
1. Material is fed into the hopper, and the hydraulic pusher plate advances to push the material onto the rotating cutter roller;
2. The shearing, squeezing, and tearing actions of the moving and fixed blades gradually break the material;
3. The fragments that meet the screen mesh size fall and are discharged by the conveyor; the substandard materials continue to be crushed again in the machine cavity;
Advantages of hydraulic single-shaft shredder:
1. Hydraulic forced feeding, no jamming or material tangling. Specifically designed for thin films, bulk bags, long fibers, and soft materials, preventing tangling on the cutter shaft and ensuring stable feeding.
2. Uniform output and controllable particle size. Equipped with a screen, ensuring uniform crushing size, suitable for granulation and recycling.
3. Low speed, high torque, low noise, and low dust. More environmentally friendly operation, creating a cleaner workshop environment with stable energy consumption.
4. Strong overload protection and durable equipment. Automatically reverses when encountering hard materials, protecting the motor, cutter box, and reducer.

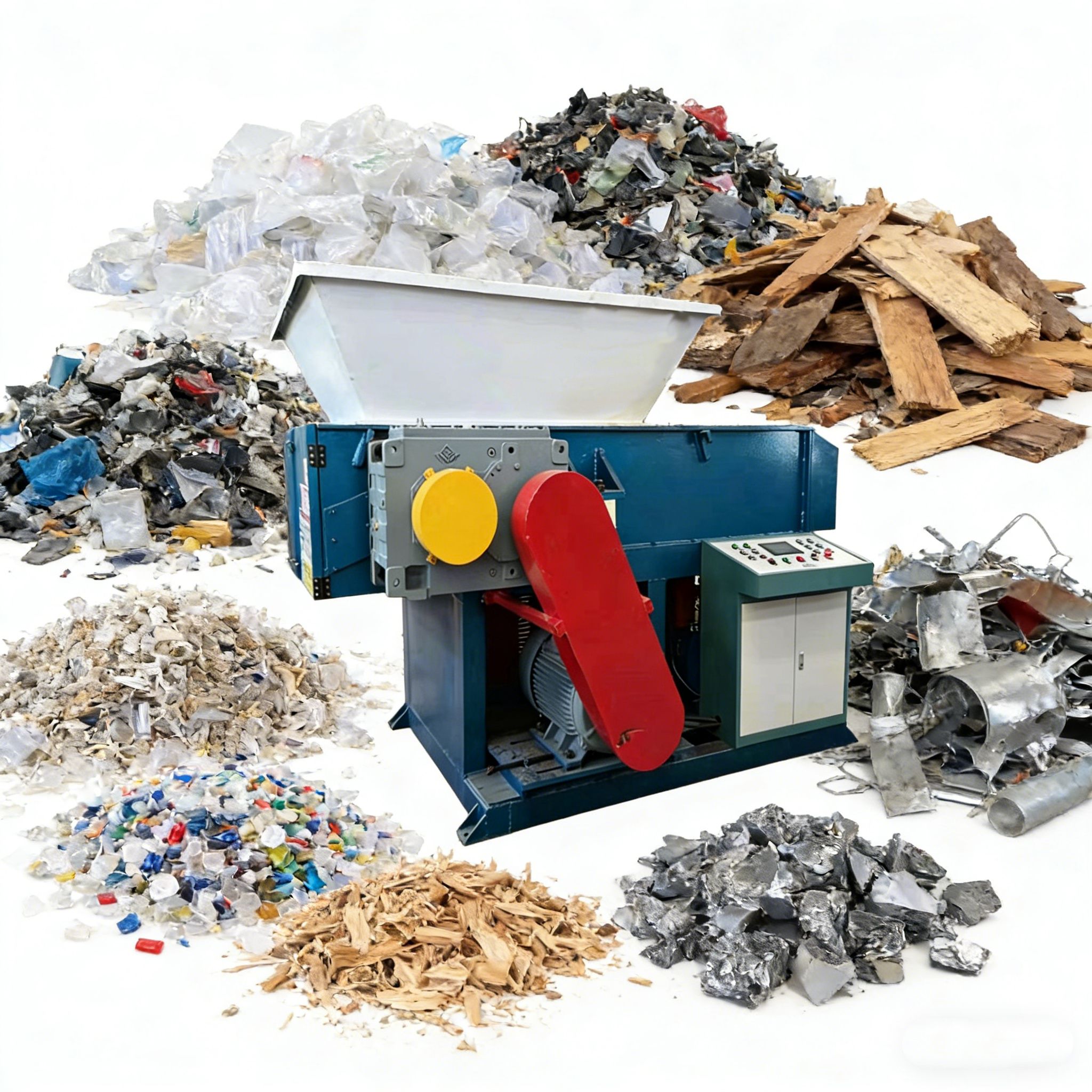

5. Wide range of applications, multi-functional. Can crush plastics, wood, rubber, waste paper, and industrial waste.
6. Simple maintenance, blades can be flipped for reuse. Low operating costs and long service life of wearing parts.
Application scenarios for hydraulic single-shaft shredder:
1. Plastics: Machine head stock, bulk bags, greenhouse film, plastic buckets, pallets
2. Timber: Waste furniture, wooden pallets, construction templates
3. Rubber: Tires, conveyor belts, shoe sole scraps
4. Metals: Lightweight materials, paint buckets, aluminum profile scraps
4. Others: Paper rolls, electronic waste casings, household waste.
Company Profile:
Henan Longsheng Machinery Equipment Co., Ltd., established in 2018, is a comprehensive enterprise integrating production, R&D, and sales. The factory is located in the Gongyi Industrial Cluster Area, Henan Province, China. The company's products are sold both domestically and internationally, serving customers worldwide and promoting common development among nations.
Packaging and Transportation:
1. Install a waterproof membrane to reduce dust and water contamination.
2.Use standard wooden crates as outer packaging to minimize bumps during transportation.
